I-Purge?X充氣管吹掃系統
I-Purge?充氣管吹掃系統
 | 關于 革命性的、正在申請的I-Purge模塊化充氣氣囊系統是目前創新性和多功能性的管道排氣系統。I-Purge在管道排氣和焊接過程中創造了不透水密封，限度地減少了排氣，節省了時間和成本，同時實現了穩定且高質量的焊接效果。 該系統在美國制造，長期可重復使用氣囊系統使操作員能夠通過一個可互換方案滿足各種排氣需求。I-Purge配備了多項高度的功能，如快速連接接頭，可卡入并方便組裝和拆卸組件。I-Purge還配備了加長且高耐熱的束帶，使氣囊能夠放置在熱影響區之外，并足以適應任何預熱或高溫應用。 這些的功能使操作員能夠創建多種配置，包括單面管塞和減管器。氣囊尺寸從2英寸到70英寸（51-1778毫米）不等，可以單獨購買，也可以作為整套系統購買，如果需要更大尺寸或更換部件，這是一項明顯的優勢。 I-Purge非常適合制造車間，憑借其的設計超越現有技術，為所有管道清洗需求提供完整解決方案 |

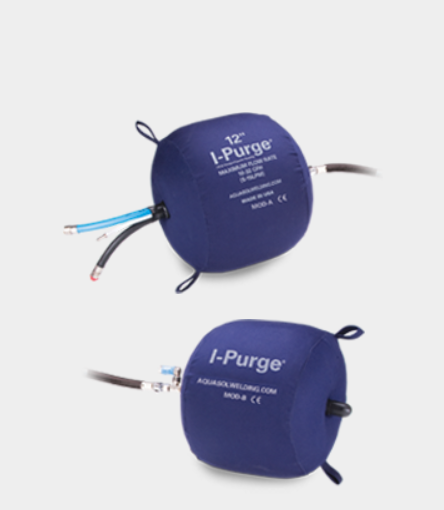

 | 特色與優勢 充氣水囊模塊A和B型
|

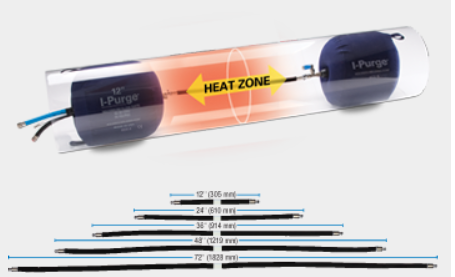

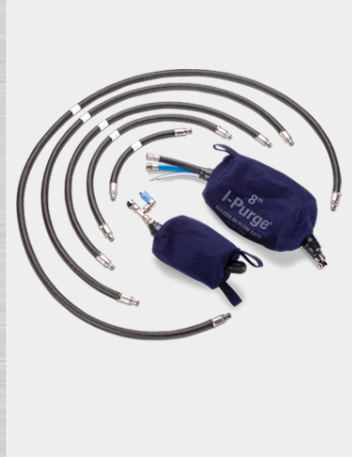

 | 高溫延長背帶
|

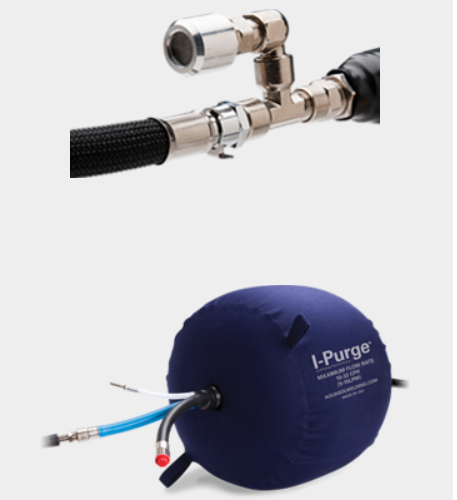

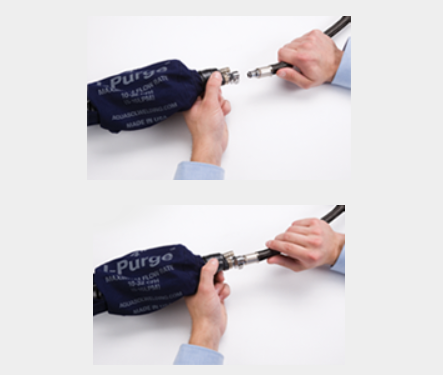

 | 快速連接可更換接頭
|
| 專有的泄壓閥
惰性氣體擴散器

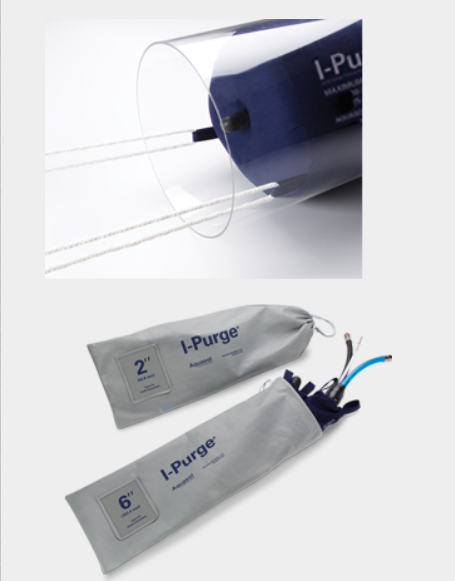

拉環
攜帶包
I-凈化減針

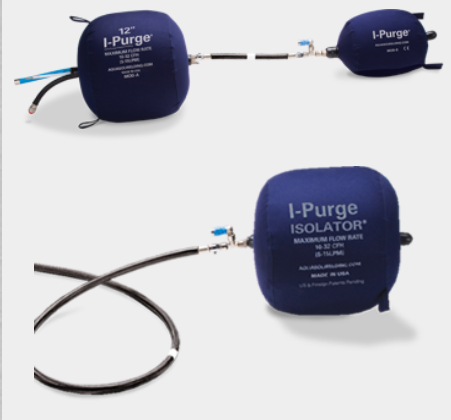

I-Purge 隔離器充氣管塞和單排氣囊
I-Purge? 隔離器適配器：充分利用我們的模塊化設計！ 將您的I-Purge?雙袋系統改造成單側隔離器，以應對復雜的焊接幾何設計。我們的I-Purge?和I-Purge ?X水囊均可轉換，采用創新的模塊化設計！ I-Purge? Mod-A 適配器： Mod-A I-Purge? 水囊的快速連接擴散器 I-Purge? Mod-B 適配器： 一根帶接頭的軟管，用來連接你的I-Purge? Mod B水囊和氬氣罐 |

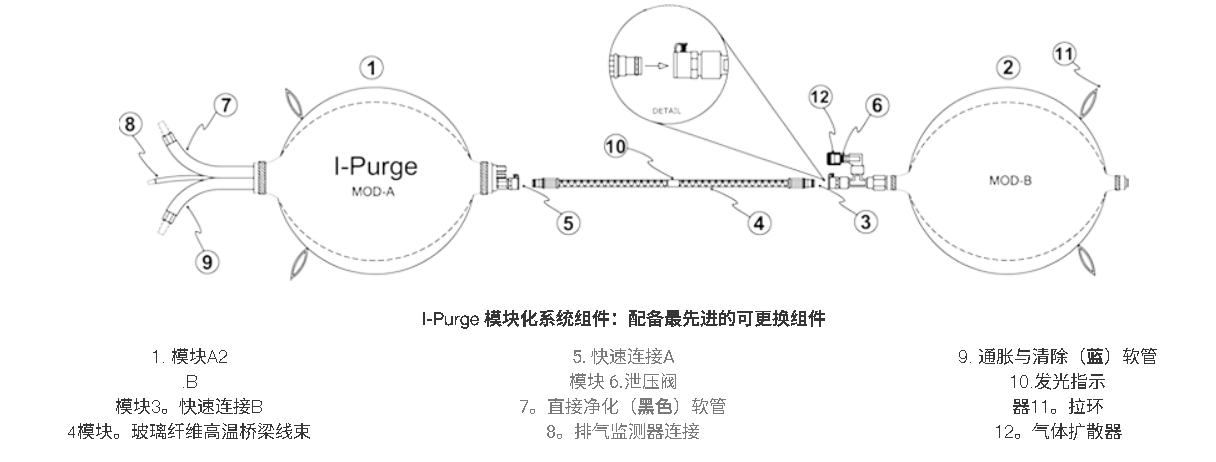

I-Purge的工作原理
I-PurgeX模塊化充氣系統
Item No | Minimum Diameter | Maximum Diameter | Standard Harness Length | Description | |||
English | Metric | English | Metric | English | Metric | ||
XABLD 2-3 | 2″ | 51 mm | 3″ | 76 mm | 11″ | 279 mm | 2-3″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 4-6 | 4″ | 102 mm | 6″ | 152 mm | 11″ | 279 mm | 4-6″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 8-12 | 8″ | 203 mm | 12″ | 305 mm | 11″ | 279 mm | 8-12″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 14-18 | 14″ | 356 mm | 18″ | 457 mm | 16″ | 406 mm | 14-18″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 20-26 | 20″ | 509 mm | 26″ | 660 mm | 18″ | 457 mm | 20-26″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 28-36 | 28″ | 711 mm | 36″ | 914 mm | 20″ | 509 mm | 28-36″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 38-48 | 38″ | 965 mm | 48″ | 1219 mm | 36″ | 914 mm | 38-48″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 50-58 | 50″ | 1270 mm | 58″ | 1473 mm | 42″ | 1067 mm | 50-58″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
XABLD 60-70 | 60″ | 1524 mm | 70″ | 1778 mm | 42″ | 1067 mm | 60-70″ I-Purge X Expandable Double Purge Bag System with High Heat Harness |
I-PurgeX Isolator?
Item No | Dimensions | Description | |
English | Metric | ||
XISO 2-3 | 2-3" | 51-76 mm | 2-3" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 4-6 | 4-6" | 102-152 mm | 4-6" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 8-12 | 8-12" | 203-305 mm | 8-12" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 14-18 | 14-18" | 356-457 mm | 14-18" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 20-26 | 20-26" | 509-660 mm | 20-26" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 28-36 | 28-36" | 711-914 mm | 28-36" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 38-48 | 38-48" | 965-1219 mm | 38-48" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 50-58 | 50-58" | 1270-1473 mm | 50-58" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
XISO 60-70 | 60-70" | 1524-1778 mm | 60-70" I-Purge X Isolator One-Sided Plug with 10' Hose and Valve |
I-Purge X 模塊化系統組件
Item No. Module A | Item No. Module B | Dimensions | Description | |
English | Metric | |||
XABLD-2 MOD A | XABLD-2 MOD B | 2" | 51 mm | 2" I-Purge X Module A or B |
XABLD-4 MOD A | XABLD-4 MOD B | 4" | 102 mm | 4" I-Purge X Module A or B |
XABLD-8 MOD A | XABLD-8 MOD B | 8" | 203 mm | 8" I-Purge X Module A or B |
XABLD-14 MOD A | XABLD-14 MOD B | 14" | 356 mm | 14" I-Purge X Module A or B |
XABLD-20 MOD A | XABLD-20 MOD B | 20" | 509 mm | 20" I-Purge X Module A or B |
XABLD-28 MOD A | XABLD-28 MOD B | 28" | 711 mm | 28" I-Purge X Module A or B |
XABLD-38 MOD A | XABLD-38 MOD B | 38" | 965 mm | 38" I-Purge X Module A or B |
XABLD-50 MOD A | XABLD-58 MOD B | 50" | 1270 mm | 50" I-Purge X Module A or B |
XABLD-60 MOD A | XABLD-60 MOD B | 60" | 1524 mm | 60" I-Purge X Module A or B |
XABLD-70 MOD A | XABLD-70 MOD B | 70" | 1778 mm | 70" I-Purge X Module A or B |
附件組件可選線束長度
Item No | Dimensions | Description | |
English | Metric | ||
ABLD-ELH-24 | 24" | 610 mm | 24" (2′) Extended Length High Heat Harness |
ABLD-ELH-36 | 36" | 914 mm | 36" (3′) Extended Length High Heat Harness |
ABLD-ELH-48 | 48" | 1219 mm | 48" (4′) Extended Length High Heat Harness |
ABLD-ELH-72 | 72" | 1828 mm | 72" (6′) Extended Length High Heat Harness |
ABLD-ELH-CUSTOM | Any Size | Any Size | Custom Lengths Available Upon Request |
ABLD-CNADP | N/A | N/A | 1/4" Female MPT to 1/4 Female BSPP Conversion |
